3D/Rendering Design Work
Bid Submittal to SLOC


Bid submission to Salt Lake City Olympic Commission & Bechtel for 2002 Winter Games.

We were interviewed for AutoCAD® and 3D Studio® Management Consultation.

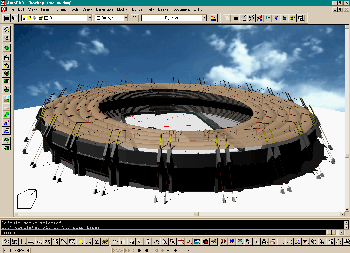

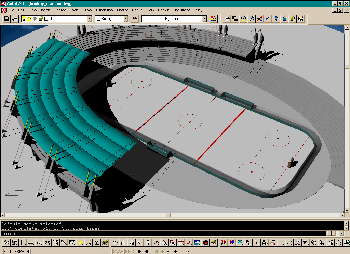

Stadium-2.gif (21965 bytes) The Stadium was built rather rapidly in AutoCAD R14 using solid modeling.  By focusing on a single quarter that would be mirrored for the other segments, it became feasible to not only build the concrete floor slabs but also all of the seats too.

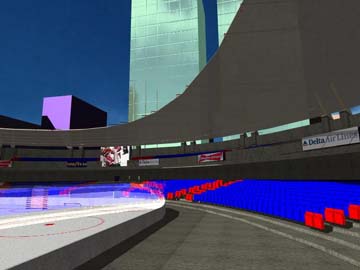

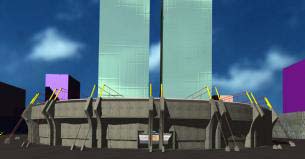

Once the quarter segment was completed, we ported the whole file into 3D Studio Max and finished the rest of the work there.
archidigm_title_99_2.jpg (57841 bytes) Here. left, is the image we used for our 1st Quarter Cover, 1999.





To see a bit of the movie we produced from this model, pick on the hyperlink below.  The movie is in Flash 3.0 format.

Stadium Movie
