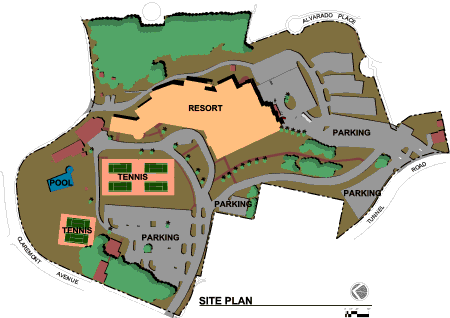

2D site plan created with AutoCAD R14. This example illustrates how Solid Hatch patterns and Draw Order can not only be used to create a more traditional rendered look, but also for basic GIS (Geographic Information Systems) organization and area calculations. Each "filled" area is defined by a "closed polygon" and thus simple objects for the Area command to sum or subtract.
