..... DOORS 25.0 ePARTS for AutoCAD Architecture 2019 and up
IMPERIAL UNITS - RESIDENTIAL & COMMERCIAL DOORS
PRODUCT OVERVIEW

Contents:
Greetings ---- Product Features ---- Purchase

1Greetings .1-1 DOORS 25 ePARTS OVERVIEW
Introduction
Thank you for your interest in the DOORS 25 eParts product by ARCHIdigm.  Before you decide to purchase this product we would like to inform you about what you get and how it works so you don't end up buying something you don't want.

This kit is not a software product and it does not do anything on its own.  It is a library of Object Styles and MvBlocks designed exclusively for Autodesk's AutoCAD Architecture 2019 and up CAD program.

This product complements our Window Styles eParts products by offering over 100 Residential and light Commercial Door Styles.  Primary door groups include interior, entry, entry systems, stock, barn, commercial and garage.

Door Styles in this product range from simple shapes based on Profiles to complex Door/Window Assembly Styles that use custom Blocks and Curtain Wall Unit Styles.  All Door Styles come with trim on both sides that can be adjusted using Profiles.  Knowledgeable ACA users can use the solutions exemplified in this product to create numerous unique custom designs.

WHAT'S NEW:

All DWA Styles have been redesigned to match regular Door and Window Styles.  DWA Profiles are now Offset by 3/4" simulating Measure to "Inside of Frame" and our custom Wall Styles have a custom Wall Endcap Style used in a custom Opening Endcap Style for DWA to compensate for this 3/4" Offset.

Doors Content Catalog has been reorganized for greater clarity in Tool function and access.

Property Set Definition Styles have been updated and improved for better Door Schedules.  All Door Data Tools have been moved to "GT - Annotation - Openings" Tool Palette under the General Tools Catalog.

Multi-panel Doors have been improved and new ones added that are Regular Door Objects.

Interior Folding Door Systems have been added.

Commercial Partition Systems have been added to a new Tool Palette named, "Doors - Commercial - Partition Walls"

2Product Features 2-1 DOORS 25 ePARTS OVERVIEW
The Content Layout

This product has been designed to work entirely within AutoCAD Architecture's Content Browser.  Each product comes as a Catalog within which you will find Tool Palettes and Tool Catalogs organizing the various components found within the product.

Below is a list of the MvBlocks and Object Styles that you will find in this kit.







Standard Rectangular Door Objects

In the Standard Category of Rectangular Door Styles, you will find three groups or Palettes divided into "Wood", "Stucco" and "Masonry".  All of these Door Styles have been customized in a similar fashion.  In fact, the "Wood" and "Stucco" Door Styles are nearly identical.

Each of these Door Styles has a complex set of Blocks attached to represent top center, top corner left, top corner right, side and side right.  In Plan View, illustrated to the right, you should only see the Blocks for the inside and outside left and right sides (or jambs).

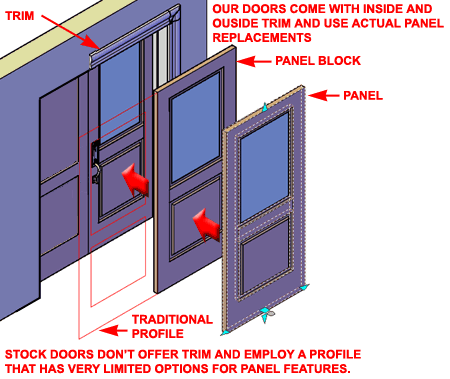

The shape of all trim Blocks is controlled by individual Profiles assigned to the various positions around the Doors.

The Standard Rectangular Door Styles use the "Auto-adjust to Width of Wall" setting and will thus fit any wall width.  You cannot, however, change their shape because Block attachments will not conform to non-rectangular shapes; separate styles have been included for non-rectangular shapes.

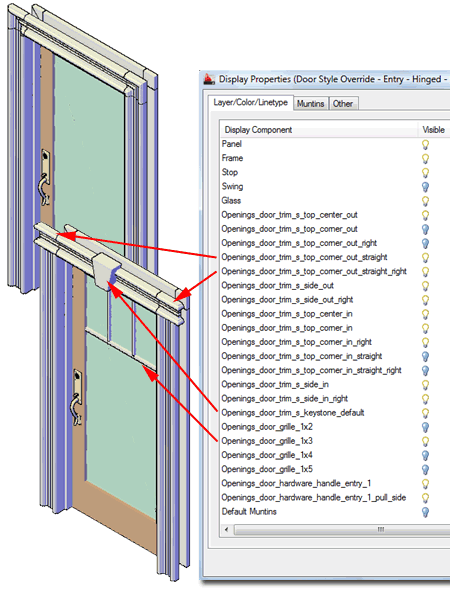

Door Display Components for Elevation, Model and Model High Detail

Standard and Complex Rectangular Door Styles have been configured with numerous trim components to allow for a variety of trim configurations.  You will find these Display Components under the "Elevation", "Model" and "Model High Detail" Display Representations.

In the illustration to the right I show how turning these Display Components On or Off can have a dramatic effect on how the window looks.  Interior and Exterior Top Corners come with duplicate components: one that wraps the corner and one that runs straight out beyond the adjacent trim.  Other components include, four grille configurations, a default muntin layout and a default keystone.





The Structure of our Complex Door Library

If you have done any customization of Doors in AutoCAD Architecture or simply worked with the stock content, you may have discovered the numerous limitations set by working with door Profiles.  One of the greatest limitations is that you have to Attach Blocks into Profile Voids if you want Panels (by default, the voids become glass).  We decided to replace the whole panel itself with a single Block created from other Object Styles that are better suited for working with glazing, panels, rails and stiles. Then, to make our Doors even better, we added trim that uses a Profile so you can not only change the dimensions but the shape with just a few clicks.  Oh, we added handles and knobs too.

For those who prefer to work with door Profiles, we have included numerous Door Styles that are based on stock content but include hardware and trim.

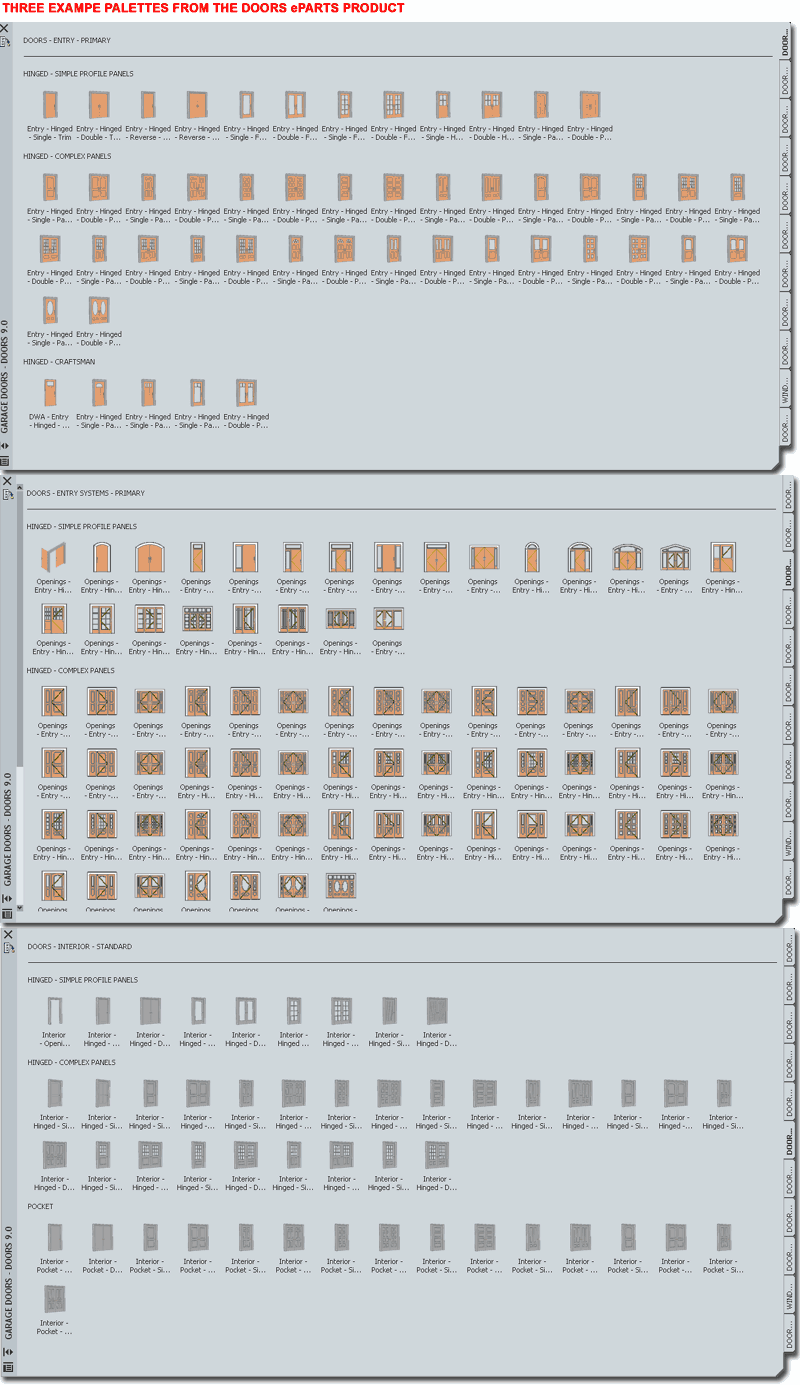

Content in this Package: (see Example Palettes)

#x# = Number of Panels Wide by High, F=Full, G=Glass, v=vision, L=Louver, sg=short grill
